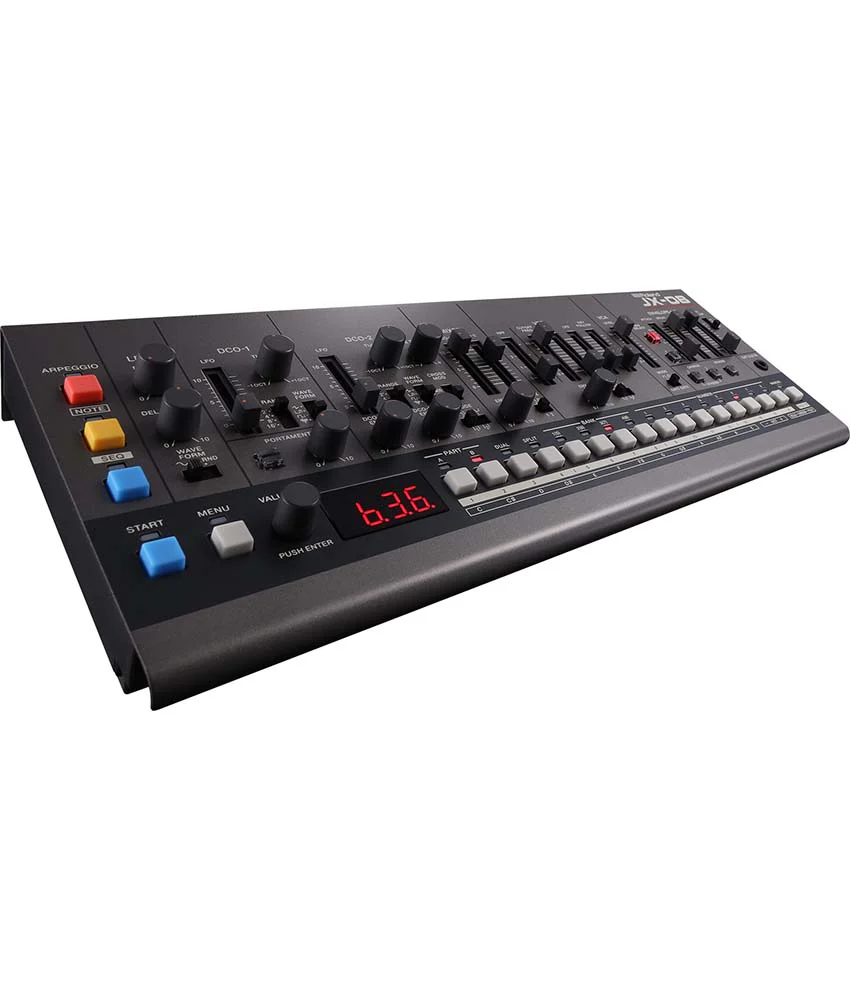

Roland JX-08 Boutique Series JX8P Sound Module

The JX-08 reintroduces the unique sound of the JX-8P, coupled with powerful new effects, a polyphonic sequencer, and more. And to enhance your creative flow, there's a full panel of hands-on controls derived from the companion PG-800 programmer unit for the original hardware.


SPECIFICATIONS:
User Memory:
Sound Patch: 256
Pattern: 128

CONTROLLERS:
Rear Panel:
Power switch
VOLUME knob

LFO SECTION:
RATE knob
DELAY TIME knob
WAVE FORM switch

DCO-1 SECTION:
LFO slider
TUNE knob
RANGE switch
WAVE FORM switch

DCO-2 SECTION:
LFO slider
TUNE knob
FINE TUNE knob
RANGE switch
WAVE FORM switch
CROSS MOD knob
DCO-1 ENV knob
DCO-2 ENV knob
MODE switch

MIXER SECTION:
DCO-1 slider
DCO-2 slider
ENV knob
MODE switch

VCF SECTION:
HPF slider
CUTOFF FREQ slider
RES slider
LFO slider
KEY FOLLOW slider
ENV knob
MODE switch

VCA SECTION:
LEVEL slider
MODE switch

ENVELOPE-1/2 SECTION:
ENV SELECT 1, 2 buttons
ATTACK slider
DECAY slider
SUSTAIN slider
RELEASE slider
KEY FOLLOW switch

PORTAMENTO SECTION:
MODE button
TIME knob

EFFECT SECTION:
CHORUS 1, 2 buttons
REVERB button

ARPEGGIO BUTTON:
NOTE button
SEQ button
START button
MENU button
VALUE knob
PART A, B buttons
DUAL button
SPLIT button
BANK 1(5)--4(8) buttons
NUMBER 1--8 buttons
MANUAL button

EFFECTS:
Chorus: 3
Delay: 4
Overdrive
FUZZ
Drive
Bit crusher
LOFI Comp
Phaser: 2
Filter
Pitch Shifter: 2Step Sequencer2 part
64 steps
8 notes per part (Polyphonic)

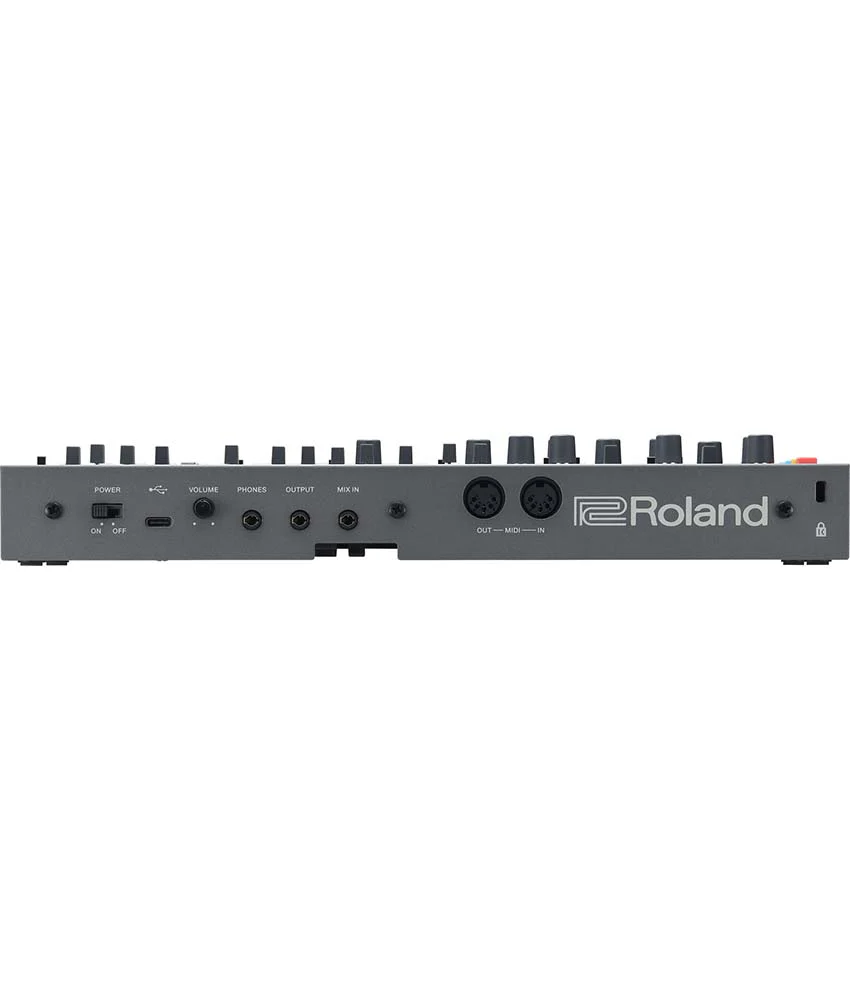

CONNECTORS:
EXT CLOCK IN jack: Mono miniature phone type
PHONES jack: Stereo miniature phone type
OUTPUT jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
MIDI (IN, OUT) connectors
USB port: USB Type-C(R) (Audio, MIDI)

Power Supply: Ni-MH battery (AA, HR6) x 4 or Alkaline battery (AA, LR6) x 4
USB bus power
Current Draw: 500 mA (USB bus power)

Expected battery life under continuous use: Ni-MH battery: Approx. 6 hours (When using batteries having a capacity of 1,900 mAh.)

* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories: Quick Start
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 4

SIZE AND WEIGHT:
Width: 300 mm, 11-13/16 inches
Depth: 128 mm: 5-1/16 inches
Height: 47 mm, 1-7/8 inches
Weight: 895 g, 2 lbs

*Pre-Owned items are sold as-is, sale is final*
