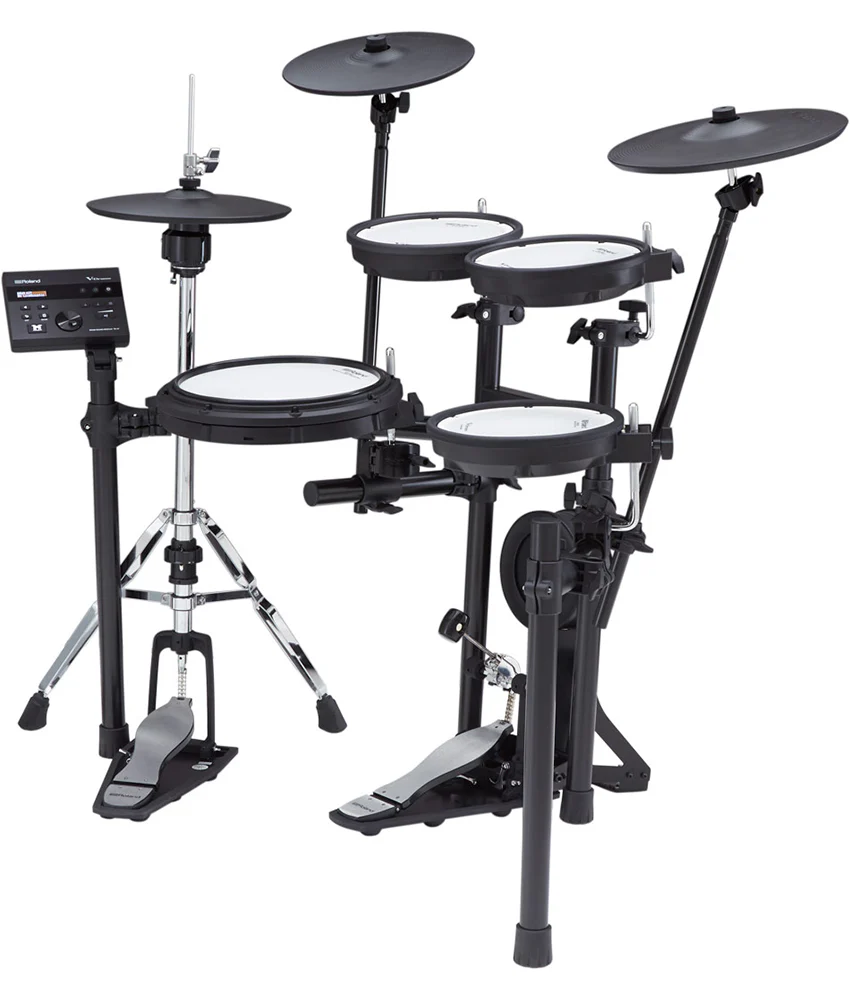

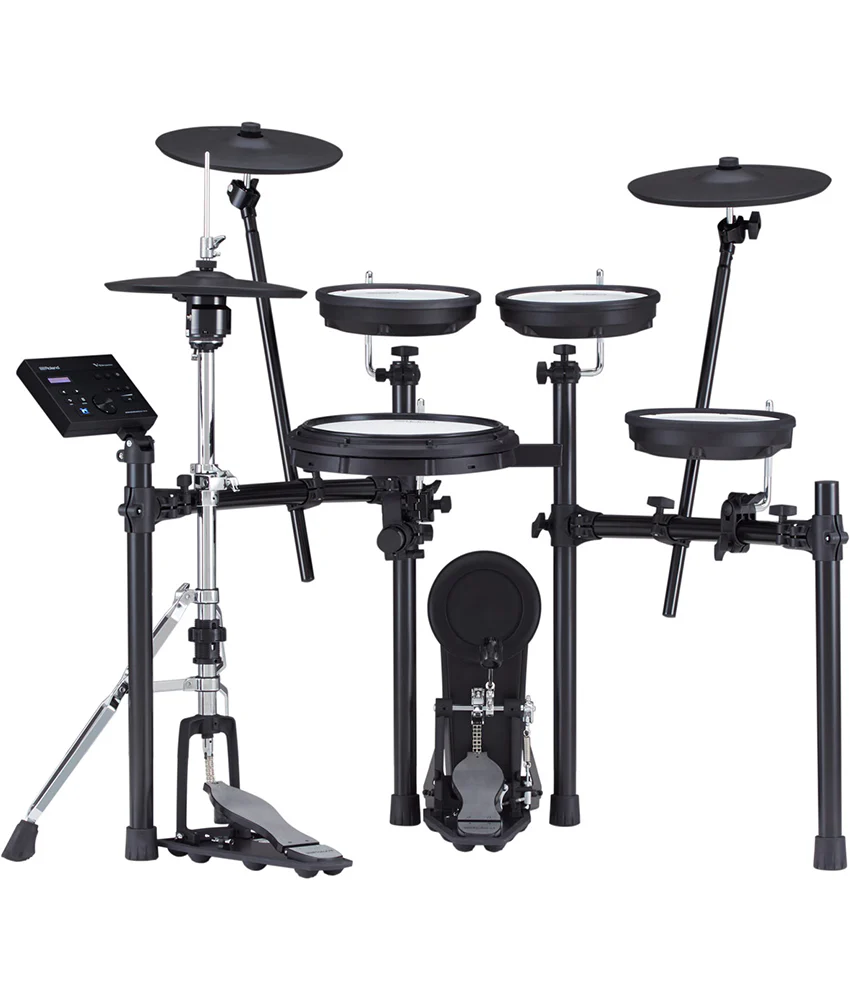

The TD-07KVX is the pinnacle of Roland's TD-07 V-Drums series, offering the ultimate complement of pads and cymbals to satisfy the most demanding drummers. This top-tier kit has the largest cymbal pads in the lineup, with a separately mounted VH-10 floating hi-hat, an uprated CY-12C crash, and a large 13-inch CY-13R ride that let you reach your true potential. You also get the PDX-12 snare and three PDX-8 toms, backed with the unrivaled feel of our original ultra-quiet, double-ply mesh heads. And, as with all TD-07 kits, the powerful TD-07 module lets the TD-07KVX eclipse traditional drums, with deep editing tools for crafting custom kits, Bluetooth for audio playback from your phone, tablet, or computer, and one-cable USB connectivity to music recording software.

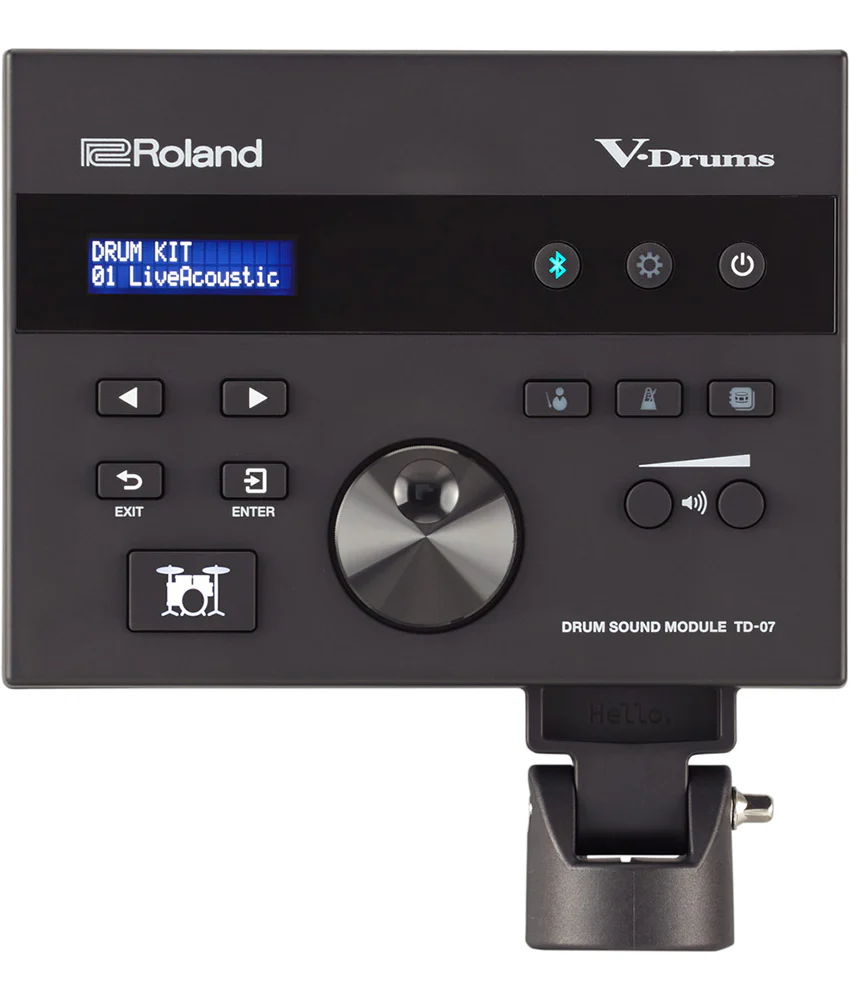

• TD-07 module with 25 preset kits, 25 user kits, and 143 instruments
• V-Edit, EQ, ambience, and 30 multi-effects offer deep editing tools to create your perfect drum kit sounds
• Snare and tom pads with Roland's legendary double-ply, tension-adjustable mesh drumheads
• One PDX-12 12-inch snare pad with independent head and rim zones for assigning different sounds and three PDX-8 8-inch single-zone tom pads
• KD-10 kick pad offers realistic rebound and beater feel while minimizing noise and vibration
• CY-12C-BK 12-inch crash and CY-13R-BK ride cymbals with choke support
• VH-10 floating 10-inch hi-hat cymbal that mounts on an acoustic hi-hat stand
• Four-post drum rack stand with metal construction and sturdy clamps with strong grip
• Integrated Bluetooth lets you wirelessly stream sound from smartphones, tablets, and other Bluetooth devices and send MIDI data to music apps
• Advanced built-in metronome with the ability to adjust time signature, note value, and click tone
• Onboard Coach function provides interactive tools to build timing skills and track progress
• USB for recording audio and MIDI data to computer music software
• Support for kit expansion with a second crash cymbal (CY-8 V-Cymbal and MDY-Standard cymbal arm sold separately)

SPECIFICATIONS:

KIT CONFIGURATION:
(*1)Kick: KD-10
Snare: PDX-12
Hi-hat: VH-10
Tom: PDX-8 x 3 *2
Crash: CY-12C-BK
Ride: CY-13R-BK
Drum stand: MDS-COMPACT x 1 (included in U.S. only)

Drum kits: 50 (Preset: over 20)
Instruments: 143

Effect Types:
Pad Equalizer: each pad
Overhead Mic Simulator
Room
Multi-Effects: 1 system, 30 types

Coach functions (5 modes):
Time check (easy)
Time check (hard)
Quiet count
Auto up/down
Change-up

Metronome:
Tempo (20--260)
Rhythm type (5 types)
Sounds (15 types)

Bluetooth:
Supported standards: Bluetooth Ver 4.2
Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)

Display: 16 characters x 2 lines LCD (with backlight)

Connectors:
OUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)

USB COMPUTER:
Speed: Hi-speed USB
Driver mode: Generic, Vender
Protocol: USB MIDI, USB Audio *3

USB Audio:
Sampling Rate (original): 44.1 kHz
Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz
Record: 2 channels
Playback: 2 channels

Power supply: AC adaptor (DC 12 V)
Current draw: 250 mA

Accessories:
Setup Guide
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Special connection cable

Options (sold separately):
Personal drum monitor: PM series
V-Drums accessory package: DAP-3X
V-Drums mat: TDM series
Noise eater: NE series

SIZE & WEIGHT:
Dimensions:
1,300 (W) x 1,100 (D) x 1,200 (H) mm
51-3/16 (W) x 43-5/16 (D) x 47-1/4 (H) inches
Weight: 20.9 kg / 46 lbs 2 oz

*1 Kick pedal, hi-hat stand, and drum throne are not included.
*2 Rim-shot is not supported.
*3 In order to use USB audio, switch to vendor mode and use the vendor driver.
